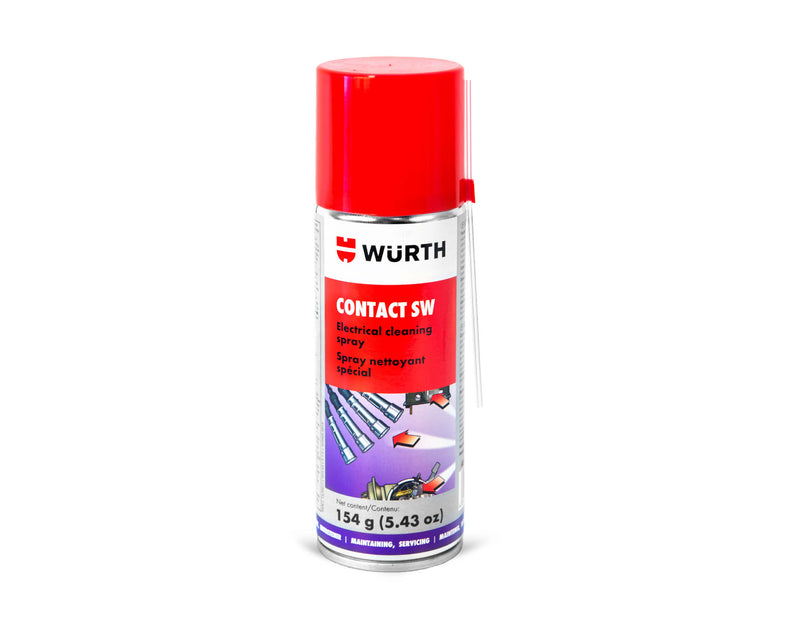

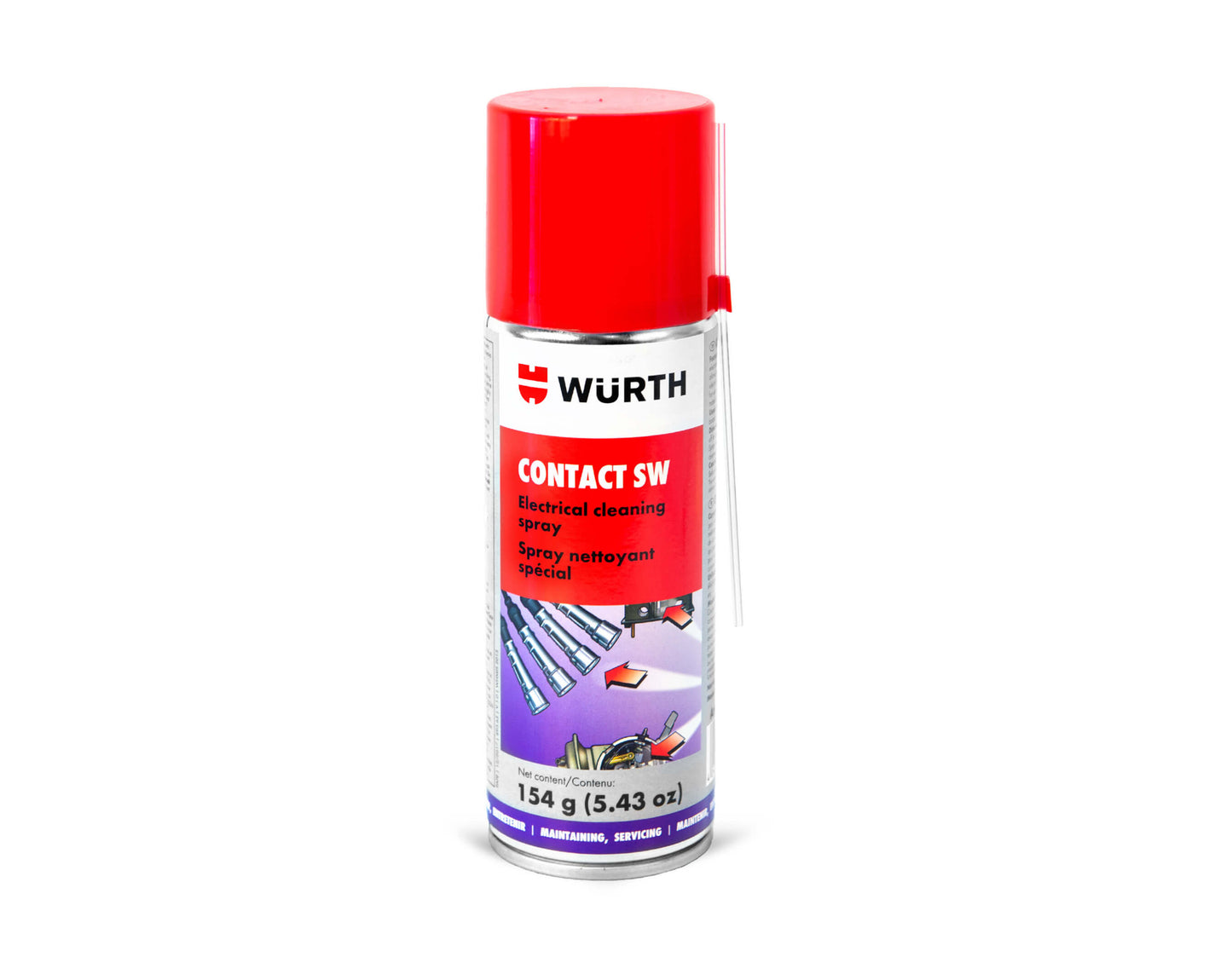

Würth Contact Spray SW

1. De-energise all electrical components — Do not work on energised circuits. Ensure all power is disconnected and the system is de-energised before cleaning.
2. Prepare the work area — Ensure adequate ventilation for solvent fumes. The product is flammable — avoid open flames or ignition sources.
3. Inspect the aerosol can — Verify the can is intact and undamaged. Check expiration date.
4. Protect surrounding components — Cover or shield components that should not contact the spray to prevent unintended cleaning or damage.
5. Shake the can well — Mix the solvent thoroughly before use to ensure optimal cleaning performance.
6. Spray the contaminated contacts — Apply Contact Spray SW directly to the electrical contacts, circuit board elements, relays, or other components requiring cleaning.
7. Allow contact time — Let the solvent work briefly on contamination (typically 10–20 seconds) to dissolve and loosen residues.
8. Repeat if necessary — For heavily soiled components, apply additional spray to ensure complete contamination removal.
9. Allow complete drying — Allow the solvent to evaporate completely before reconnecting power or resuming electrical operation. Typical drying time is 5–10 minutes depending on temperature and humidity.
10. Verify dryness — Ensure no visible moisture remains on the cleaned contacts before energising the circuit.
11. Test electrical function — Once dry, reconnect power and test the component to confirm functionality has been restored.

Product Type Solvent-based electrical contact cleaner

Format Aerosol spray can

Volume 200 mL

Chemical Basis Mineral oil-based solvent mixture

Colour Transparent liquid

Smell Characteristic solvent odour

Density 0.77 g/cm³

Evaporation Rate Fast — typically 5–10 minutes to complete dryness

Application Method Aerosol spray directly on contacts

Primary Application Electrical contact cleaning, moisture removal, wood resin dissolution

Residue Characteristic Residue-free evaporation — no residues left behind

Material Compatibility Safe on electrical components, circuit boards, relays, plastics

Contamination Removal Oil, grease, moisture, wood resin, dust, oxidation products

Leakage Current Interruption Removes contamination bridges causing unwanted current flow

Functionality Restoration Restores electrical function to corroded or contaminated components

Pressure Aerosol pressurised can — protect from heat and sunlight

Temperature Resistance Keep away from temperatures above 50°C

Safety Requirements Must be completely dry before electrical system restart

Flammability Highly flammable — avoid open flames, sparks, and ignition sources

Ventilation Ensure adequate ventilation during use

Shelf Life 24 months from production

Storage Conditions Store in cool place, protected from sunlight and heat

Environmental Mineral oil-based formulation

HS Code 3810.10
