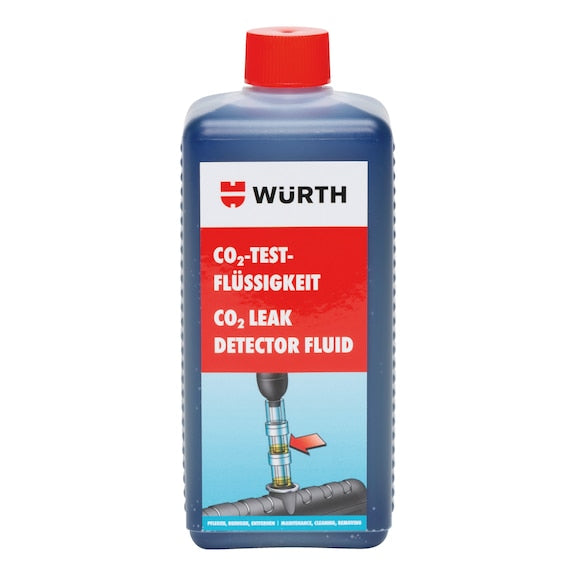

Würth CO2 Test Liquid for Use With CO2 Leakage Tester

Würth CO2 Test Liquid for Use With CO2 Leakage Tester

24 in stock

Key Features

  • Safe, non-toxic liquid - free from acids and non-flammable.
  • Environmentally friendly - contains only 0.03% non-toxic organic and inorganic salts dissolved in distilled water.
  • Easily disposed of with no harmful impact.
  • Clear colour-change indication: liquid shifts from blue to green to yellow when CO2 is detected.
  • Specifically developed for use in the Würth CO2 Leakage Tester.
£39.99 GBP
£39.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details
Product Product subtotal Quantity Price Product subtotal
Würth CO2 Test Liquid for Use With CO2 Leakage Tester
Würth CO2 Test Liquid for Use With CO2 Leakage Tester
Würth CO2 Test Liquid for Use With CO2 Leakage Tester
£39.99/ea 		£0.00
£39.99/ea £0.00

Description

Safe and Effective Leak Detection

Würth CO2 Test Liquid is a specialised diagnostic fluid designed to be used in combination with the Würth CO2 Leakage Tester. It provides a quick and reliable method for detecting leaks between the combustion chamber and cooling system, which are often caused by a faulty head gasket, cylinder head hairline cracks, or block damage.

Environmentally Sound and Non-Hazardous

Unlike many test fluids, this solution is acid-free, non-flammable, and non-harmful according to EU Directives 67/548/EEC and 1999/45/EC. It can be safely handled and disposed of without environmental risks, making it suitable for both workshop and mobile diagnostics.

Accurate Diagnosis Through Colour Change

During testing, if CO2 is present in the cooling system air buffer, the fluid undergoes a distinct colour change.:

  • Blue = no CO2 present (no combustion leak detected).
  • Green to Yellow = CO2 detected (possible head gasket or cylinder head fault).

This clear indication allows technicians to make a rapid and precise diagnosis without dismantling the engine.

More Information

Application Instructions

  1. Insert the Würth CO2 Leakage Tester into the coolant filler neck or expansion tank opening.
  2. Ensure that no coolant is drawn into the tester during the process.
  3. Operate the suction ball to pull gases from the cooling system into the tester.
  4. Observe the middle chamber. If the liquid remains blue, no combustion gases are present. If it changes to green and then yellow, CO2 is present, indicating a leak.
  5. Dispose of the test fluid responsibly after use.

Usage Notes

  • For diesel engines, place the engine under load before testing (test drive or repeated revving). This ensures sufficient combustion gas reaches the cooling system, as diesels operate with excess air at light load.
  • Always follow the technical data sheet for detailed testing conditions.
  • Only use with the Würth CO2 Leakage Tester for accurate results.

Specifications

Form: Diagnostic test fluid

Chemical Basis: Distilled water with 0.03% organic and inorganic salts

Safety: Acid-free, non-flammable, classified as "non-harmful"

Indication: Colour change from blue → green → yellow in presence of CO₂

Application Temperature: Standard engine operating conditions

Disposal: Environmentally sound, easily disposed of
