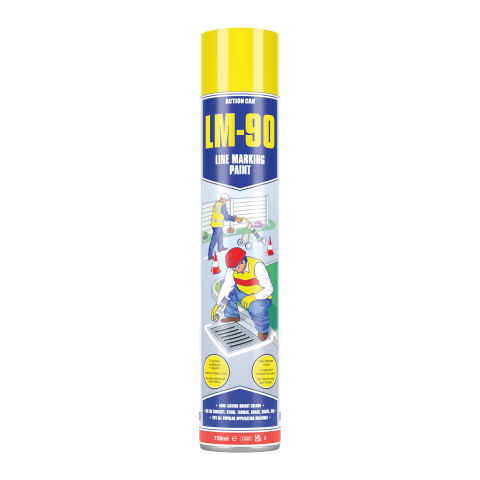

Action Can LM-90 Line Marking Paint

Prepare the surface for marking. Clean the surface with a brush or pressure washer to remove dirt, dust, and loose debris—clean surfaces ensure adhesion.

Shake the aerosol can to free the agitator ball. Mix thoroughly for one minute to ensure uniform paint consistency and colour saturation.

Plan the line or marking pattern. Mark the intended line location with chalk or light pencil if precise placement is critical.

Hold the can upright for standard spray application. Maintain vertical orientation for optimal spray consistency and paint delivery.

Invert the can for marking application. For line marking, invert the can to enable spray delivery to floor surfaces.

Apply paint onto the surface to be marked. Maintain the intended line position and direction during application.

Control line density through movement speed. Slower walking speed creates denser, more opaque colour; faster movement produces lighter marking—adjust speed based on coverage requirements.

Maintain consistent distance from surface. Hold the can 15–20 cm from the surface for uniform spray pattern and coverage.

Complete the intended line or marking. Apply paint along the entire intended marking length or pattern.

Hold the can upright after use. Return the can to upright position and spray a short burst to clear the nozzle, preventing paint blockage.

Store the can on its side. Store the aerosol horizontally to prevent valve blockage from settled paint residue.

Allow full drying and curing. Touch-dry occurs within 10 minutes; allow 24 hours full curing before heavy traffic or operations.

Product Type Quick-drying permanent line marking paint

Format Aerosol spray canister

Container Size 750 mL

Available Colours Orange (RAL 2003), Green (RAL 6018), Blue (RAL 5015), White (RAL 9003), Red (RAL 3020), Yellow (RAL 1018), Black (RAL 9004)

Appearance Matt finish coloured paint

Odour Solvent

Finish Profile Precise flat matt finish, one-coat application

Touch Dry Time 10 minutes

Full Cure Time 24 hours

Solubility Insoluble in water; soluble in some solvents

Coverage 140 metres line at 1.5 mph walking pace; 220 metres line at 2.5 mph walking pace

Primary Function Indoor and outdoor surface line marking

Secondary Functions Safety zone identification, utility line marking, hazard demarcation

Surface Compatibility Concrete, asphalt, stone, tarmac, wood, grass, gravel, soil

Application Method Aerosol spray, hand application or professional marking machines

Machine Compatibility Fits all popular line marking application machines

Application Technique Upright for spray clearing; inverted for floor marking application

Line Density Control Speed of movement during application controls marking opacity—slower speed creates denser colour

Surface Preparation Light cleaning to remove dirt and debris; no special surface preparation required

Adhesion Profile Excellent adhesion without peeling or flaking through years of foot traffic

Colour Standards RAL colour references for standardised facility identification

Typical Colour Applications Orange (machinery areas), Green (safety areas), Blue (work-in-progress), Red (defect/scrap areas), Yellow (access aisles), White (production equipment), Black (finished goods areas)

Marking Longevity Durable permanent marking lasting years under typical facility conditions

Weather Resistance Suitable for indoor and outdoor exposure

Operational Benefit Quick-drying minimises downtime and enables rapid area return to operation

Tracking Risk Minimised through rapid 10-minute drying time

Storage Position Store horizontally (on side) to prevent valve blockage

Nozzle Maintenance Spray upright burst after use to clear nozzle and prevent blockage

Storage Temperature Normal ambient; below 50°C for aerosols

Shelf Life Minimum 1 year with proper storage

Market Sectors Agriculture, trade/pro-DIY, construction, warehousing, utilities

HS Code 3208.10
