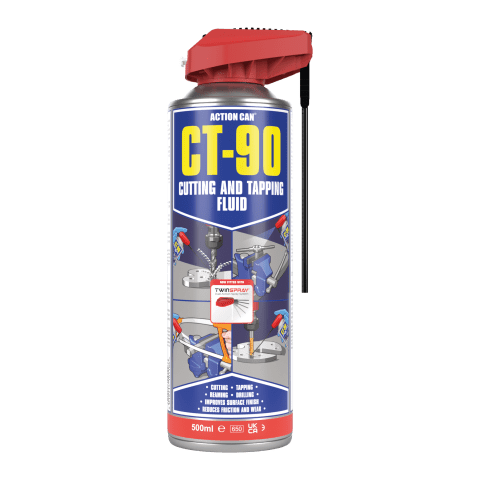

Action Can CT-90 Cutting and Tapping Fluid

Application Instructions

1. Select appropriate CT-90 format for the operation. Choose aerosol for precision work, liquid for flood lubrication, or compound for manual application based on cutting operation type.
2. Prepare the workpiece and cutting tool. Ensure workpiece is securely clamped and cutting tool is sharp and properly positioned.

For Aerosol Application:

1. Gently shake the aerosol can. Mix the lubricant thoroughly to ensure uniform formulation distribution.
2. Hold the can in upright position. Maintain vertical orientation for optimal spray consistency.
3. Apply to the cutting tool before operation begins. Spray a light, even coating onto the tool surface and cutting edges.
4. Begin the cutting operation at low speed. Start the machine and allow initial contact between tool and workpiece.
5. Apply additional lubricant to the workpiece during cutting. Spray CT-90 onto the workpiece surface during the cutting operation, maintaining contact between lubrication and cutting interface.
6. Maintain continuous lubrication through the operation. Apply additional CT-90 as needed throughout the cutting cycle.
7. Exercise caution near moving parts. Avoid spraying directly into rotating machinery where the spray could be deflected.

For Liquid Application (Bottle or Bulk Can):

1. Apply CT-90 fluid before cutting begins. Pour or squeeze a generous amount onto the cutting tool and workpiece.
2. Apply additional lubricant during the cutting operation. Reapply as needed to maintain continuous lubrication during cutting.
3. Monitor lubricant level and replenish. Maintain adequate lubrication by adding CT-90 as the original application is depleted through cutting action.

For Compound Application:

1. Apply by brush to the workpiece. Use a brush to apply CT-90 compound directly to the area requiring lubrication.
2. Dip cutting tool or bit into the compound. For smaller tools or bits, dip directly into the compound for complete coverage.
3. Ensure complete coverage of cutting edges. Apply additional compound if initial coverage appears inadequate.

For All Application Methods:

1. Monitor cutting performance and quality. Observe cutting speed, surface finish, and heat generation to assess lubrication effectiveness.
2. Increase application if cutting becomes difficult. If resistance increases or surface finish degrades, apply additional CT-90.
3. Allow cutting fluids to drain from workpiece. Once cutting is complete, allow CT-90 to drain away before removing the workpiece.
4. Clean the workpiece and tool after completion. Remove excess cutting fluid and metal chips with appropriate solvents or cloths.
5. Inspect the tool for wear. After the operation, examine the cutting tool for wear, chipping, or deformation to assess tool condition.

Product Type Versatile metal cutting and tapping fluid with extreme-pressure additives

Available Formats Aerosol spray, poly bottle with spout, bulk can, compound tub

Container Sizes 400 mL aerosol, 500 mL aerosol TwinSpray, 500 mL bottle, 480 g compound, 5 L bulk can

Primary Function Multi-purpose cutting lubricant for cutting, tapping, drilling, reaming

Secondary Functions Deep drawing, blanking, piercing, thread cutting

Application Method Aerosol spray, pour/squeeze liquid, brush application, tool dipping

Metal Compatibility All tough metals including stainless steel, carbon steels, Nimonic alloys, high-tensile steels, high-speed steels

Formulation Dark amber liquid (spray/liquid); dark amber paste (compound)

Specific Gravity 0.870 @ 20°C (aerosol); 1.050 @ 15°C (liquid); 1.045 @ 60°C (compound)

Viscosity 26 mm²/s @ 40°C (aerosol); 144 mm²/s @ 40°C (liquid)

Flash Point >220°C (aerosol); >192°C (liquid and compound)

Pour Point -12°C (aerosol); -5°C (liquid)

Solubility Insoluble in water

Odour Characteristic

Heat Dissipation Actively absorbs cutting heat, reducing tool and workpiece temperatures

Swarf Management Reduces metal scrap accumulation and improves chip clearing

Additives Extreme-pressure (EP) additives for friction reduction and seizing prevention

Safety Caution May cause staining on some yellow metals (brass, copper); use with caution

Application Caution Exercise caution when applying near moving parts; avoid spray deflection into rotating machinery

Tool Life Extension Reduces friction and thermal stress, typically 2-3x tool life improvement

Storage Temperature Normal ambient; below 50°C for aerosols

Shelf Life Minimum 6 years with proper storage

Market Sectors Fasteners & fixings, engineering, trade/pro-DIY, electrical MRO, agriculture

HS Code 2710.19
