1 1

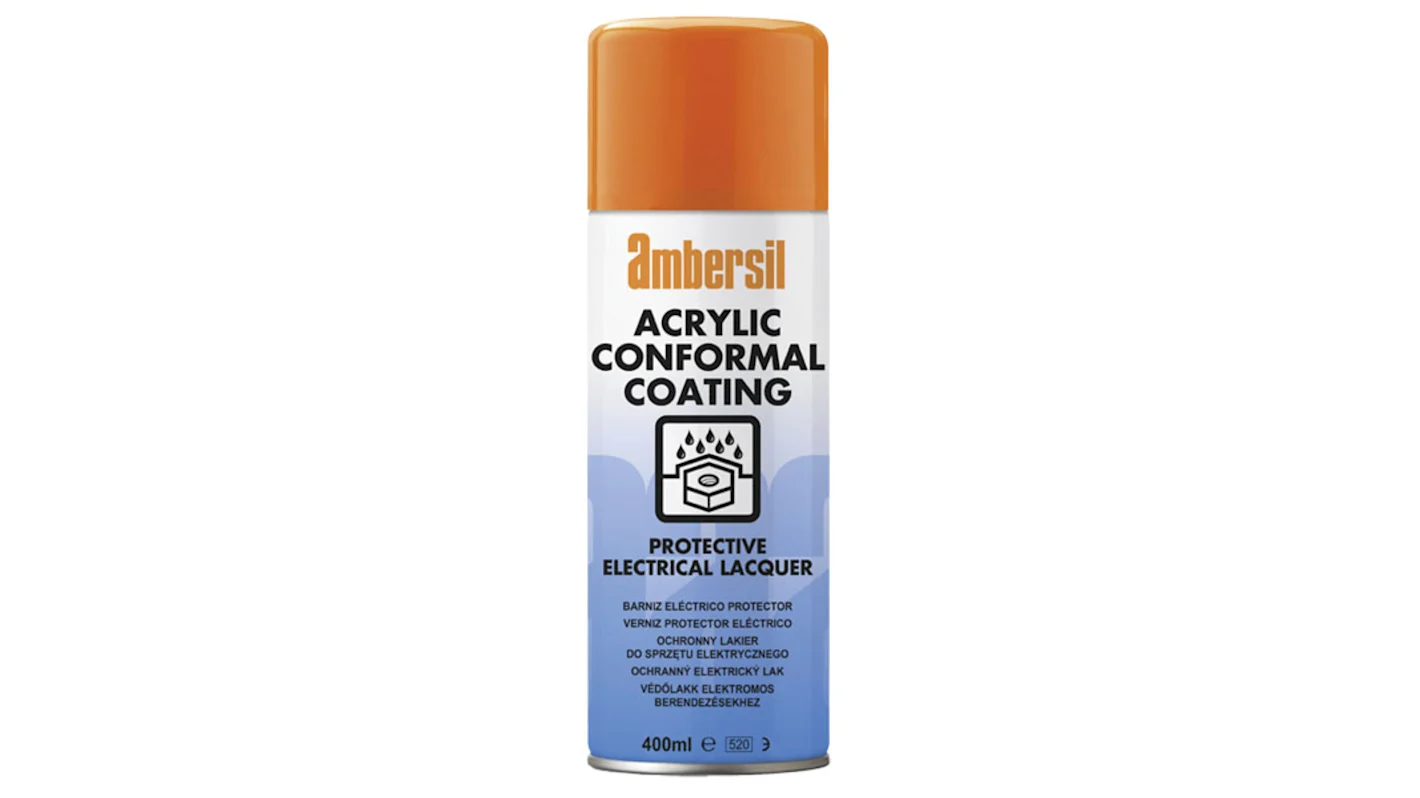

Ambersil Acrylic Conformal Coating

Ambersil Acrylic Conformal Coating

30235-AA

24 in stock

Key Features

  • Transparent, flexible acrylic-based insulating lacquer.
  • High dielectric strength of >80kV/mm for superior electrical insulation.
  • Protects PCBs from humidity, inorganic acids, and caustic vapours.
  • Fast-drying formulation, touch-dry in approximately 20 minutes.
  • Durable adhesion across a temperature range of -40°C to 60°C.
  • UV-traceable for easy inspection of coating coverage.
£16.99 GBP
£16.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Shipping Information

What Are My Shipping Options?

In-Store Pickup

In-Store pickup is available on all purchase. Pickups are available Monday - Friday between the hours of 9:00–17:00.

An email confirmation will be sent when your order is ready for collection.

Free Shipping

We offer free Standard (2-3 Days) shipping on orders within the United Kingdom on orders over £100. Please note, some large items that require specialist courier companies, such as large mirrors and palleted items are excluded from this deal.

Shipping Fees

We also offer shipping at the following rates:

Standard-Size Parcel

Standard (UK Only) - 2-3 Days - £2.99

Express (UK Only) - 1-2 Days - £4.99

International (EU) - 3-7 Days - £14.99

International (ROW) - 5-10+ Days -£23.99


Large Parcel

Standard (UK Only) - 2-3 Days - £2.99

Express (UK Only) - 1-2 Days - £4.99

International (EU) - 3-7 Days - £14.99

International (ROW) - 5-10+ Days - £69.99

Most UK orders will be sent using Royal Mail, with larger items being sent with DPD.

International orders within the EU will normally be dispatched with Royal Mail, DPD, or UPS.

International orders to the rest of the world will normally be sent with DPD or UPS.

Please note, international delivery charges are very volatile and subject to change. We will do everything in our power to honour the delivery fee, however, in some cases, shipping may increase in price. In this event, you will be given the offer to pay the difference or cancel the order and receive a full refund.

Please note, we may be subject to various rules and restrictions in relation to some international deliveries, and you may be subject to additional taxes and duties over which we have no control. If such cases apply, you are responsible for complying with the laws applicable to the country where you live and will be responsible for any such additional costs or taxes.

Dispatch Times

Orders placed before 15:00 Monday - Friday will be shipped on the same day.

Orders placed after this time will be shipped on the following business day,

Please note, we are closed at weekends, as well as English Bank Holidays.

Returns Policy

Our refund policy can be found at the following address: https://esupplyline.com/policies/refund-policy.

Further Information

You can contact us for further information on our shipping policies using the following:

Phone: 01953 711 881

Email: sales@esupplyline.com

Live Chat: Available on our website, Monday - Friday, 8:30 - 17:00.

Contact Form: https://esupplyline.com/pages/contact

View full details
Product Product subtotal Quantity Price Product subtotal
Ambersil Acrylic Conformal Coating
Ambersil Acrylic Conformal Coating30235-AA
Ambersil Acrylic Conformal Coating30235-AA
£16.99/ea 		£0.00
£16.99/ea £0.00

Description

Professional Circuit Board Protection

Ambersil Acrylic Conformal Coating is a high-performance protective lacquer specifically engineered for the electronics industry. This low-viscosity, solvent-drying coating creates a resilient, transparent barrier that shields printed circuit boards (PCBs) and sensitive electronic components from environmental degradation. By sealing the surface against humidity, salt spray, and corrosive chemical vapours, it effectively prevents electrical leakages and short circuits, extending the operational lifespan of the equipment in harsh conditions.

Superior Dielectric and Mechanical Properties

The coating is formulated to provide exceptional insulating properties, boasting a dielectric strength of greater than 80kV/mm. Once cured, the film remains flexible, ensuring that it does not crack or delaminate under thermal stress or mechanical vibration. It maintains a volume resistivity of >10^13 Ωcm, providing a reliable secondary insulation layer for coils and transformers. This insulating capability also serves to reduce operational noise in electromagnetic components by fixing windings securely in place.

Precision Application and Inspection

The thixotropic, low-viscosity nature of the liquid ensures thorough coverage even in complex geometries. For high-volume industrial requirements or automatic spray systems, the product can be thinned using Ambersil Acrylic Conformal Coating Thinners to achieve the exact viscosity required for uniform film thickness. The transparent nature of the dry film allows for easy visual inspection of components, while its durable adhesion (Gt 0-1 on copper) ensures long-term reliability even after exposure to temperature extremes ranging from -40°C to 100°C.

Environmental and Chemical Resistance

Beyond electrical insulation, this acrylic resin provides a robust shield against humid inorganic acids and caustic vapours. It is an essential preventative maintenance tool for electronics situated in industrial environments where chemical exposure is a risk. The fast-drying characteristic - reaching a touch-dry state in just 20 minutes at 20°C - minimises production downtime and reduces the risk of dust contamination during the curing process.

More Information

Application Instructions

  2. Upon Pre-clean the PCB thoroughly using Ambersil PCB cleaner to remove all grease, dirt, and flux residues.
  3. Ensure the work area is well-ventilated and free from all potential ignition sources.
  4. Conduct a compatibility test on plastic housings or stress-cracking susceptible materials like polycarbonate before full application.
  5. Shake the aerosol can well and spray from a distance of 20 30cm onto the dry, degreased surface.
  6. Apply in even strokes to achieve a target dry film thickness of 20-40 μm.
  7. Upon completion, clear the aerosol valve by inverting the can and spraying until only propellent escapes.
  8. Allow the film to dry for at least 20 minutes before handling; full mechanical properties are achieved after 24 hours at ambient temperature.

Specifications

Film Colour
Transparent

Dielectric Strength

80kV/mm

Surface Resistivity

10¹³ Ω

Volume Resistivity

10¹³ Ωcm

Viscosity (Bulk)
10-20 mPas

Drying Time (Touch Dry)
±20 minutes at 20°C

Temperature Range
–40°C to +60°C (Short term peak +100°C)

Adhesion (ISO 2409)
Gt 0-1

Flashpoint
<0°C (Aerosol)

Shelf Life
4 years from date of manufacture
