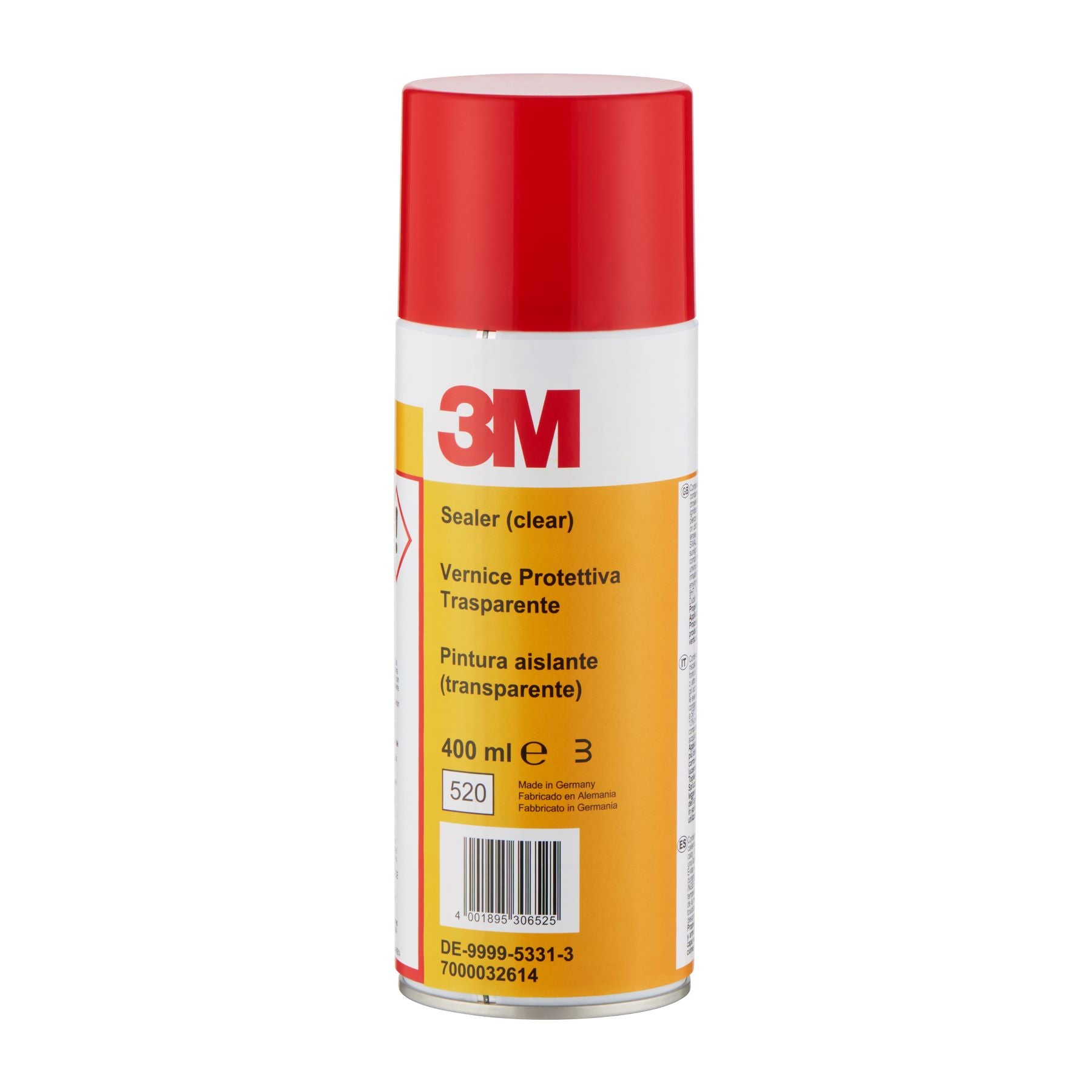

3M Scotch 1601 Clear Electrical Insulating Sealer

Superior Dielectric Protection and Insulation

3M Scotch 1601 Clear Electrical Insulating Sealer is an industrial-grade aerosol solution engineered to provide a robust protective barrier for electrical connections and sensitive electronic assemblies. With a dielectric strength rated at 40kV/mm, this sealer effectively prevents electrical leakage and short circuits, even in compact configurations. The modified acrylic resin hardens into a clear, flexible film that maintains its insulating properties under thermal stress, supporting a continuous operating temperature of up to 120°C. This makes it an essential component for safeguarding switches, switchgear, and terminal boards against dielectric breakdown.

Environmental and Chemical Resilience

Designed for use in demanding industrial environments, Scotch 1601 offers comprehensive protection against external contaminants. The cured film is highly resistant to UV radiation, preventing degradation and brittleness when exposed to sunlight. Furthermore, its chemical composition ensures stability when in contact with acids, alkalis, and oils, which is critical for maintaining the integrity of electrical systems in manufacturing or automotive settings. The moisture-resistant and weatherproof nature of the coating prevents corrosion and oxidation on copper and other conductive surfaces, extending the service life of printed circuits and windings.

Broad Substrate Compatibility and Adhesion

One of the primary technical advantages of this insulating sealer is its versatile adhesion profile. It is formulated to bond securely to the most common materials used in electrical engineering, including metals, glass, various plastics, and wood. This high-level adhesion ensures that the protective film does not peel or crack under mechanical vibration or thermal cycling. Whether applied to large-scale coil windings or intricate electronic components, the sealer provides a uniform, gap-free layer that isolates the substrate from the surrounding environment.

Efficient Processing and Rapid Cure

The aerosol delivery system allows for precise, even application in hard-to-reach areas where traditional brush-on coatings may fail to provide adequate coverage. The fast-drying nature of the acrylic resin minimizes downtime during maintenance or production. While the sealer is touch-dry shortly after application, it achieves a full cure within 120 minutes at room temperature (23°C). This rapid processing capability is ideal for high-throughput environments where components must be handled or moved shortly after the coating process is completed.

Broad Application Scope

3M Scotch 1601 is suitable for a diverse array of electrical and electronic applications. It is frequently employed as a protective coating for printed circuit boards (PCBs) to prevent dendrite growth and moisture ingress. In power distribution, it is used to seal terminal boards and connections in switchgear. Its ability to penetrate and coat windings and coils makes it an effective solution for motor repair and transformer maintenance. The transparency of the 1601 variant allows for visual inspection of the underlying components and markings after application, ensuring that maintenance labels and identification codes remain legible.
